Cable Reel Storage Racks For Warehouse Storage

Cable reel storage racks are one of our main products. Size and load capacity of this type of rack can be customized. For quotation, we need to know the information as below: (1) external diameter and length; (2) weight of cable reel; (3) internal diameter of hole which allow reel hanger to go through; (4) how many cable reels will be stored in height of racks.

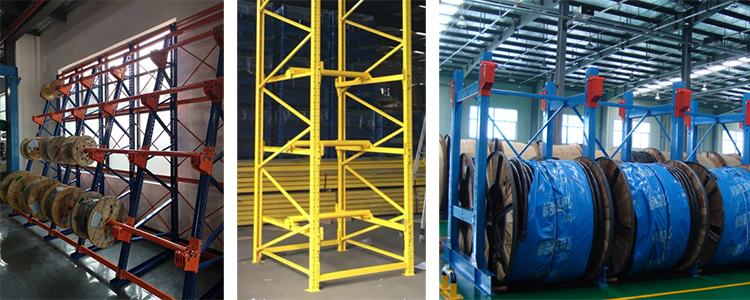

cable reel storage rack

There are three types of cable reel storage racks we can do.

Type 1: “A” Frame Light Duty Cable Reel Storage Rack

As you can see from the picture above, this type fits cable reel with small size. The vertical frame has slope to lower height of stored cable reel for man to reach. The brackets which hold round tube reel hanger can have bearing under hanger, so that reel can roll when you pull cable from reel. It mean this type of cable reel racks is suitable on working site.

Type 2: “H” Frame Light Duty Cable Reel Storage Rack

This type has similar structure with type 1. The difference is that cable reel is stored inside of racks. This type is for cable reels with heavy weight and medium size. Cable reels are stored and retrieved by forklift.

Type 3: Heavy Duty Type Cable Reel Storage Rack

This type is for very heavy cable reels with huge size. The material of vertical post is not shaped cold rolled steel, but thick steel tubes and “H” steel. The brackets are also thick with big load capacity. Since cable reels are heavy and huge, usually they stacked 2 levels for safety.
Because the section of cable reel is round, it is necessary to place it in a proper site, or it will roll all around to damage something and hurt somebody. If you have any inquiry about cable reel racks, feel free to contact us.
