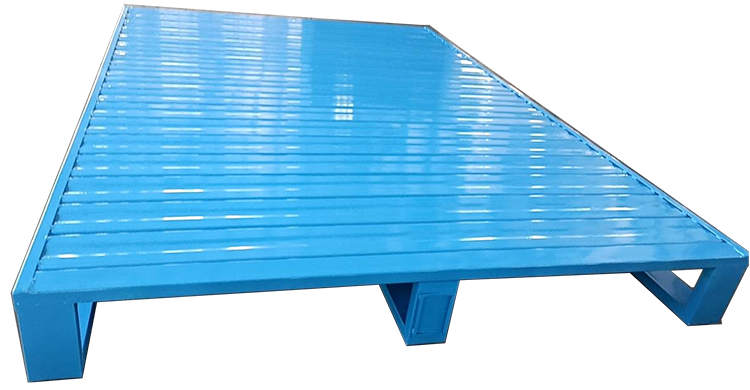

The steel pallet above is made to be used in radio shuttle racking system. Radio shuttle racking system is a racking system which uses radio shuttle to go through racking system to store and retrieve goods on pallets. When storing, the pallet with goods on it will be placed on start of pallet support panel, then radio shuttle will come and scan the pallet, and then lift pallet and take it go inside racking system. When retrieving, radio shuttle will go deep inside racking system and find the first pallet by scanning, and then lift it and bring ti to the start of pallet support panel.
The main structure of steel pallet in the picture are side tubes, top panels, side covers, legs and name plate. There are three legs under top panels and side tubes. The legs are made of 25*75mm tubes. There is one frame attached on the middle leg, where cargo specification can be put in. Side tubes are 25*50mm tubes, one in the end and one in the other end. Top panels are made of cold-rolled C-shaped steel. The panels are open in the bottom. The top panel are concave for anti-slip. Side tubes are placed in the front and back of top panels to protect top panels from fork when forklift lifts steel pallet. The side covers are welded with side tubes and top panels on side. The total height of pallet is 150mm, 25 for panels and 125mm for legs.
Since the steel pallet is for radio shuttle racking system, the dimension accuracy will be the most important factor, which requires manufacturer have precise machine and skilled welder. The steel pallets have been approved by client. If you have inquiries on steel pallet of this type, feel free to contact us. Thank you for reading. Have a nice day.
